Details of the power supply of the modified LCD monitors

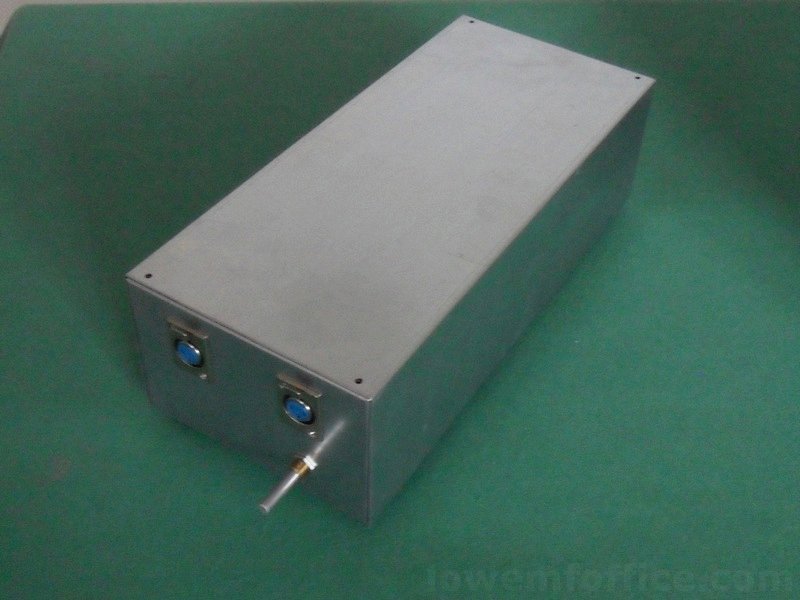

This is the power supply of the modified LCD monitors for low electromagnetic emissions. The internal details of the power supply may be different for different monitors, but the external box and connections are the same. The box dimensions are 15 x 10 x 35 cm ( 5.9 x 3.9 x 13.8 inch ).

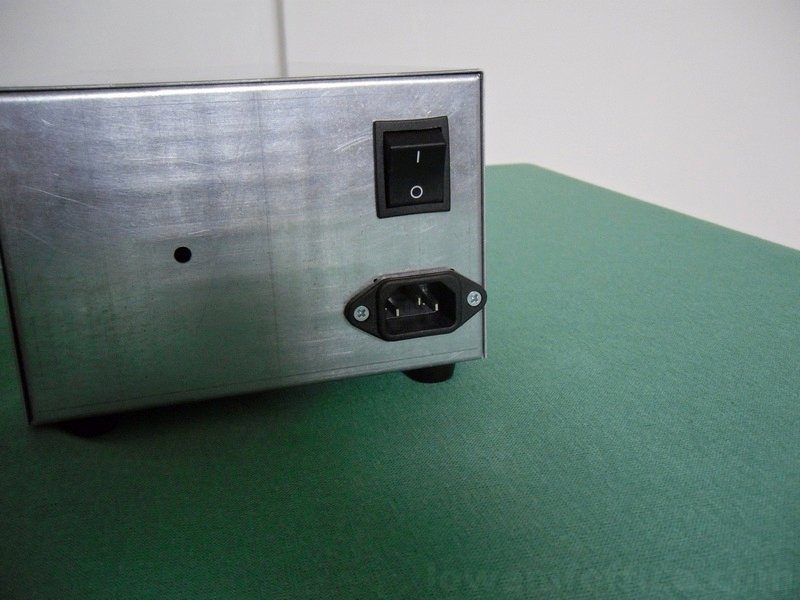

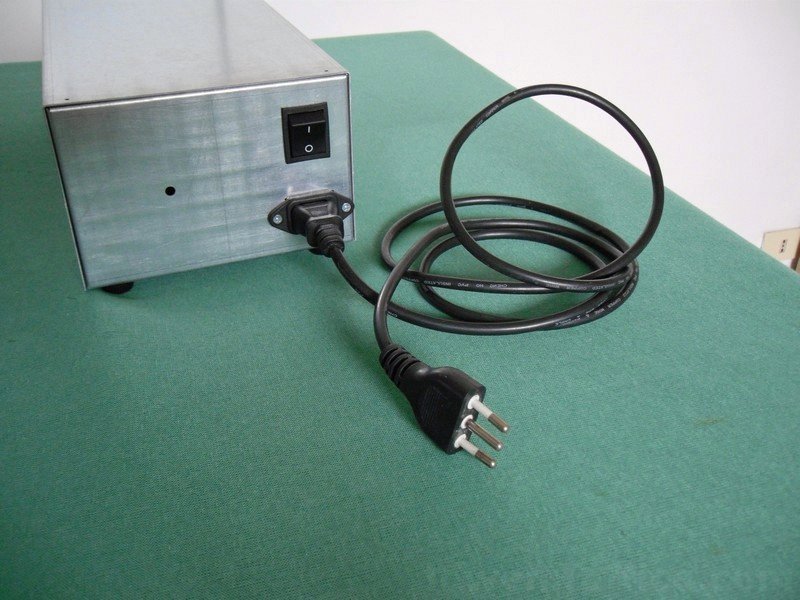

On the back side there is a big switch that detaches both line and neutral when it is off, and there is a standard IEC connector for AC input.

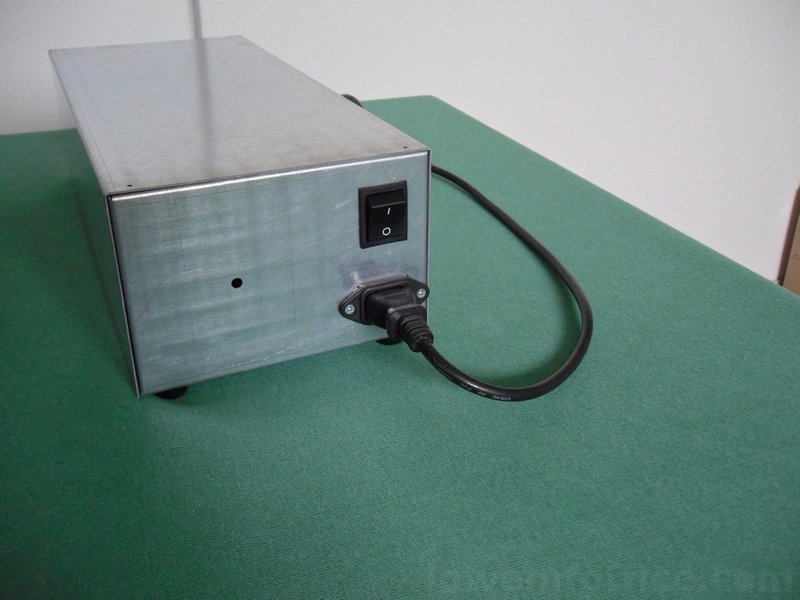

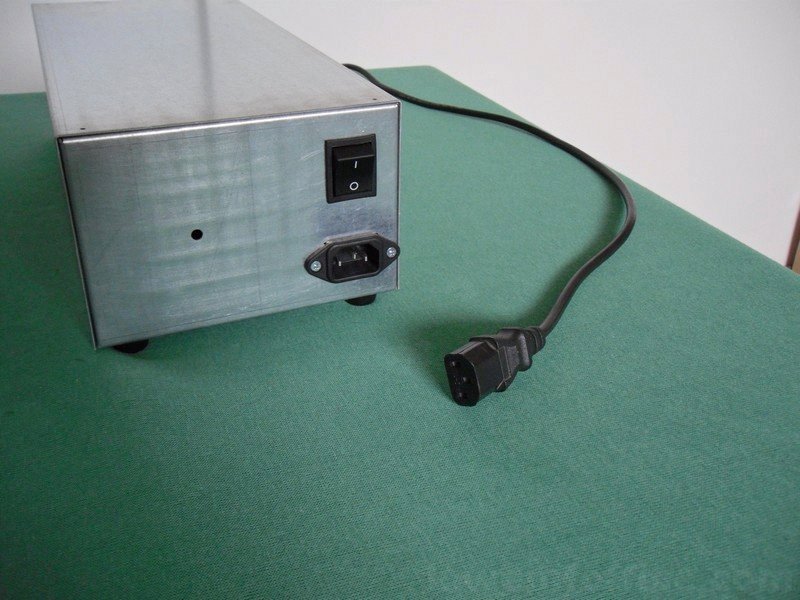

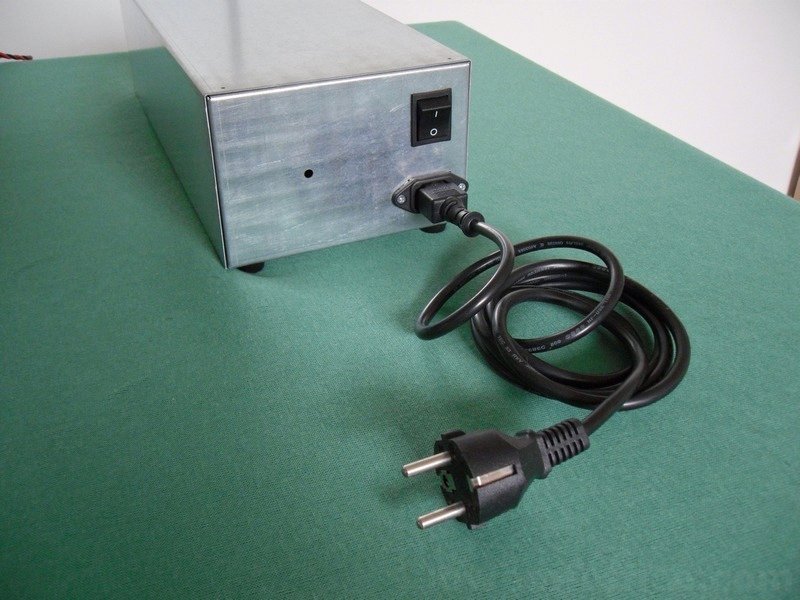

You can use a standard computer power cord to attach the power supply to the mains:

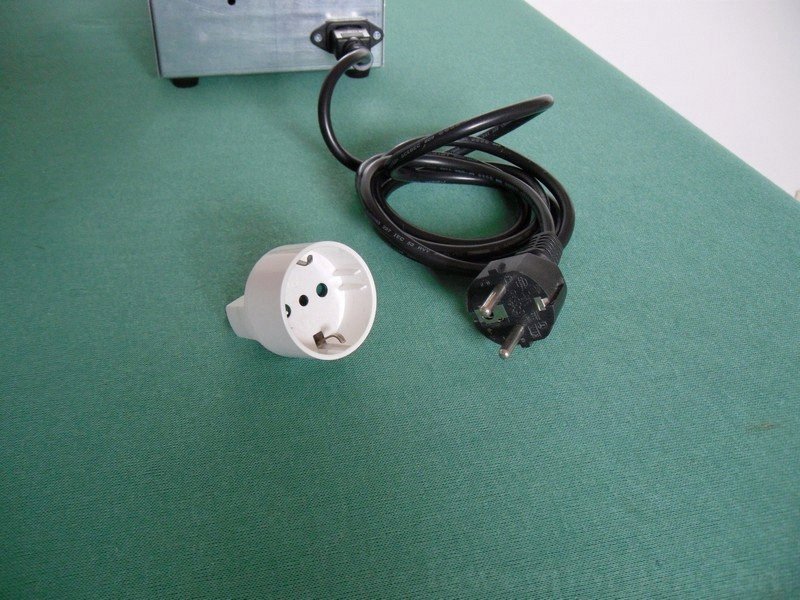

Standard power cords are usually made with the Schuko plug, but there are also some with different plugs for single countries. If you can't find a power cord for the type of sockets of your country you can still use a plug adapter.

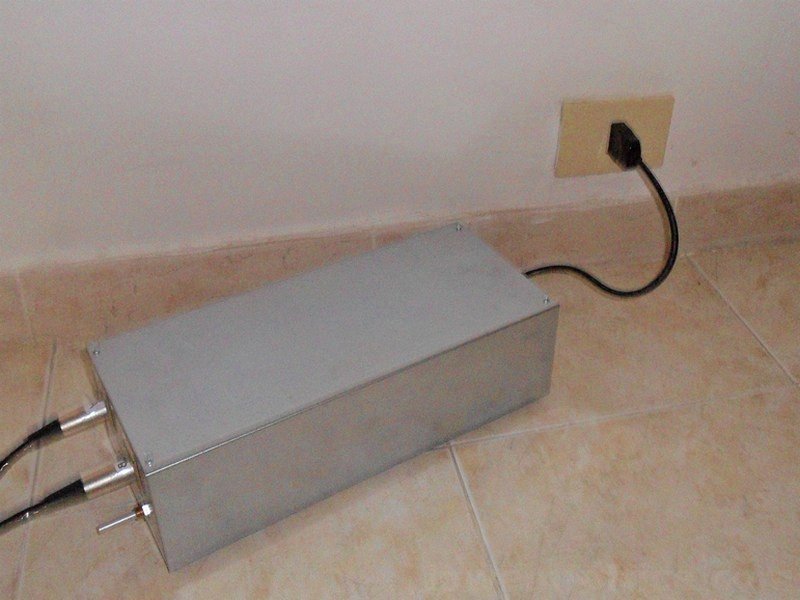

The best location for this power supply is very near to a wall socket, without other sensible objects around, and with a short power cord, just the length needed to reach the socket.

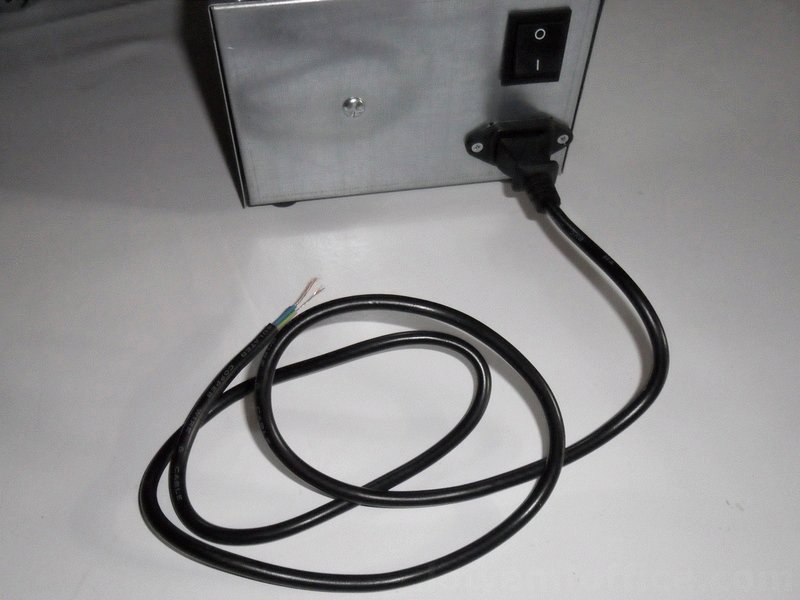

To make such a short power cord you can cut the plug away from a complete power cord, shorten the cable to the desired length, and the install a plug of the type of your country. We can also provide the piece of power cord without the plug.

Recently we have designed a smaller version of this power supply, which is 12 x 10 x 25 cm (4.7 x 3.9 x 9.8 inch ).
